A pair of newlyweds had recently purchased their first home in Cobble Hill, Brooklyn and was looking to make a few minor upgrades as they were moving in. After utilizing their bathrooms for a few days they started to notice that the sewer line had been backing up in the basement, they were quick to check brownstoner.com when they came across the Harris Water Main & Sewer Contractors’ website. Harris quickly dispatched one of their technicians to investigate the sewer line and attempt to water jet the line if possible. The tech continued to encounter several rough spots filled with roots in the sewer line when he performed a camera inspection on the inside of the pipe, his findings showed the old clay sewer pipe was not only filled with roots but was also broken in several locations.

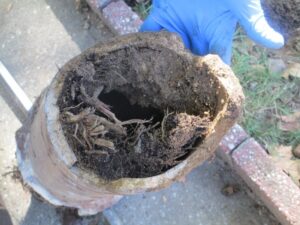

Roots in sewer pipe
At this point there was no option but to replace the entire sewer line from the building to the roadway where the city sewer line is located. Harris began working on all of the DOT and DEP permits the same day and was scheduled to start the new sewer line installation the next morning. Due to the proximity of a nearby tree, Harris was also required to obtain a NYC Parks Dept. permit, as well as having an ISA Certified Consulting Arborist on site. The Arborist serves as a liaison in-between the Parks Dept. and Harris Water to make sure the city trees are not damaged.
The Harris sewer installation team was excavating the property within 48 hrs. for the new cast iron sewer line installation. The first day consisted of breaking up the concrete in front of the house and excavating 7’ to where the existing clay sewer line is located; the new cast iron pipe was installed from the house to underneath the city sidewalk before the day was over. Normally Harris would have been required to open the sidewalk for the DEP to inspect the pipe; in this case the city tree was too close requiring Harris to make a tunnel from the property underneath the sidewalk to the roadway. All DEP inspections were passed before the hole was closed and secured for the second day of installation.

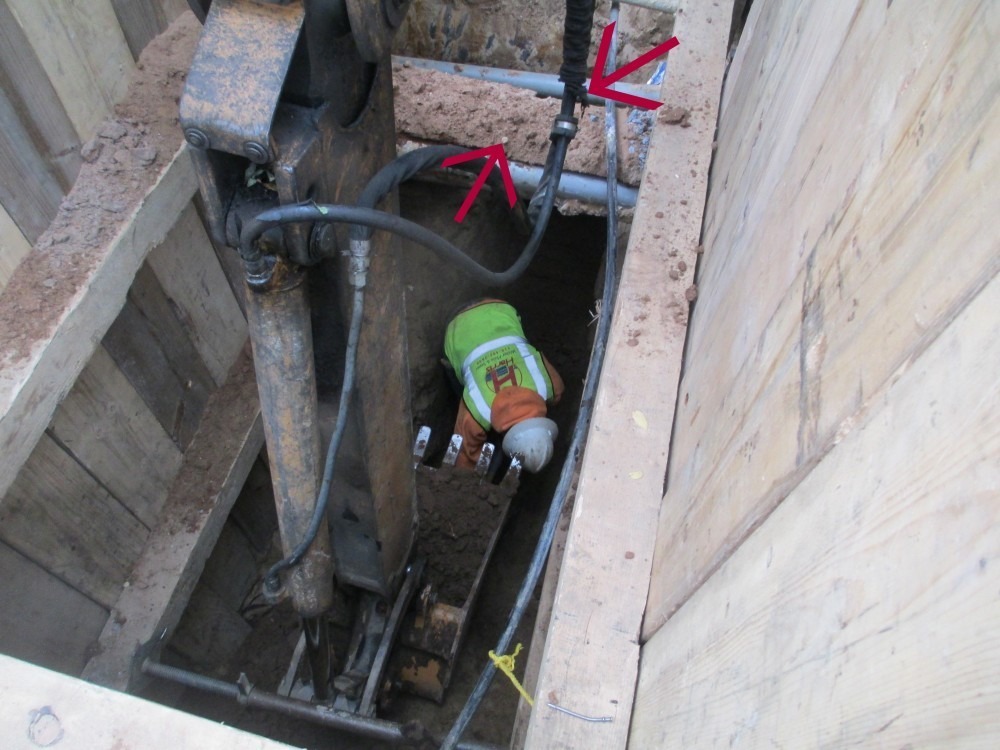

Working around utilities
Harris began opening the roadway at 8:30 AM the next day when they encountered electric lines running across the trench being dug, this required a lot of hand digging as opposed to digging by a machine. The electric lines would not allow for the backhoe bucket to fit in-between the electric lines. The crew worked diligently to install the remaining 16’ of new sewer pipe from the sidewalk to the existing spur connection on the city sewer. The new pipe was installed by 3:30pm which was just in time for the DEP inspector who signed off on the job. Harris now closed the hole with temporary asphalt before the roadway is permanently restored.
